DOES ANYONE HAVE A DRAWING? I HAVE CHECKED AND CALLED EVERY SIDECAR PERSON ON THIS PLANET.
I,M AT THE END OF MY ROPE!

THANKS MARCO


Posted : September 7, 2017 4:32 am
(@sidewise)
Posts: 99
Estimable Member


What's so difficult can't be more than five or six wires. Get VOM and start checking continuity.


Posted : September 7, 2017 2:07 pm
(@THEMARCO)
Posts: 10
Active Member
Topic starter


it sure would be nice to have the factory color coded road map in front of me. I hate to butcher up the wiring harness into a bunch of splices and look like spaghetti I,m missing half of wiring harness also. ben there before, help anyone/ ?? the poor marco


Posted : September 7, 2017 3:33 pm
(@wingincamera)
Posts: 198
Reputable Member


Not sure if it is the same, but this might help. It's from a Champion Escort.
1 clock, green 22 gauge
2 accessory Red 18 gauge
3 Ground Black 18 gauge
4 Brake light Red 22 gauge
5 Running light White 22 gauge
6 Right Turn signal Yellow 22 gauge
7 back up Blue 22 gauge
8 Canopy switch on bike Orange 22 gauge
9 Tilt Yellow 14 gauge
10 Tilt Pink 14 gauge


Posted : September 13, 2017 12:17 pm
(@THEMARCO)
Posts: 10
Active Member
Topic starter


much appreciated. i'll check it out marco


Posted : September 13, 2017 12:30 pm
(@valkrider)
Posts: 181
Reputable Member


Went through the same with my Escort a few months back. Fortunately was able to find the color coding. Also managed to locate and buy the other half of the connector. However it was difficult to get the pins secured in the rubber housing. If you are missing half I recommend just finding a complete different connector pair. Link to a Champion manual that covers all their cars. https://www.manualslib.com/manual/635122/Champion-Sidecars-Daytona-2Plus2.html#manual
And how to wire the tilt motor if you have one on yours. http://sidecar.com/mbbs22/forums/thread-view.asp?tid=9306#top
Purchased this switch to use for the tilt. http://www.ebay.com/itm/Momentary-DPDT-6-Pin-ON-OFF-ON-20amp-Rocker-Switch-Us-Seller-Shipper/322486642306 Any 20 amp DPDT momentary contact center off switch will work.

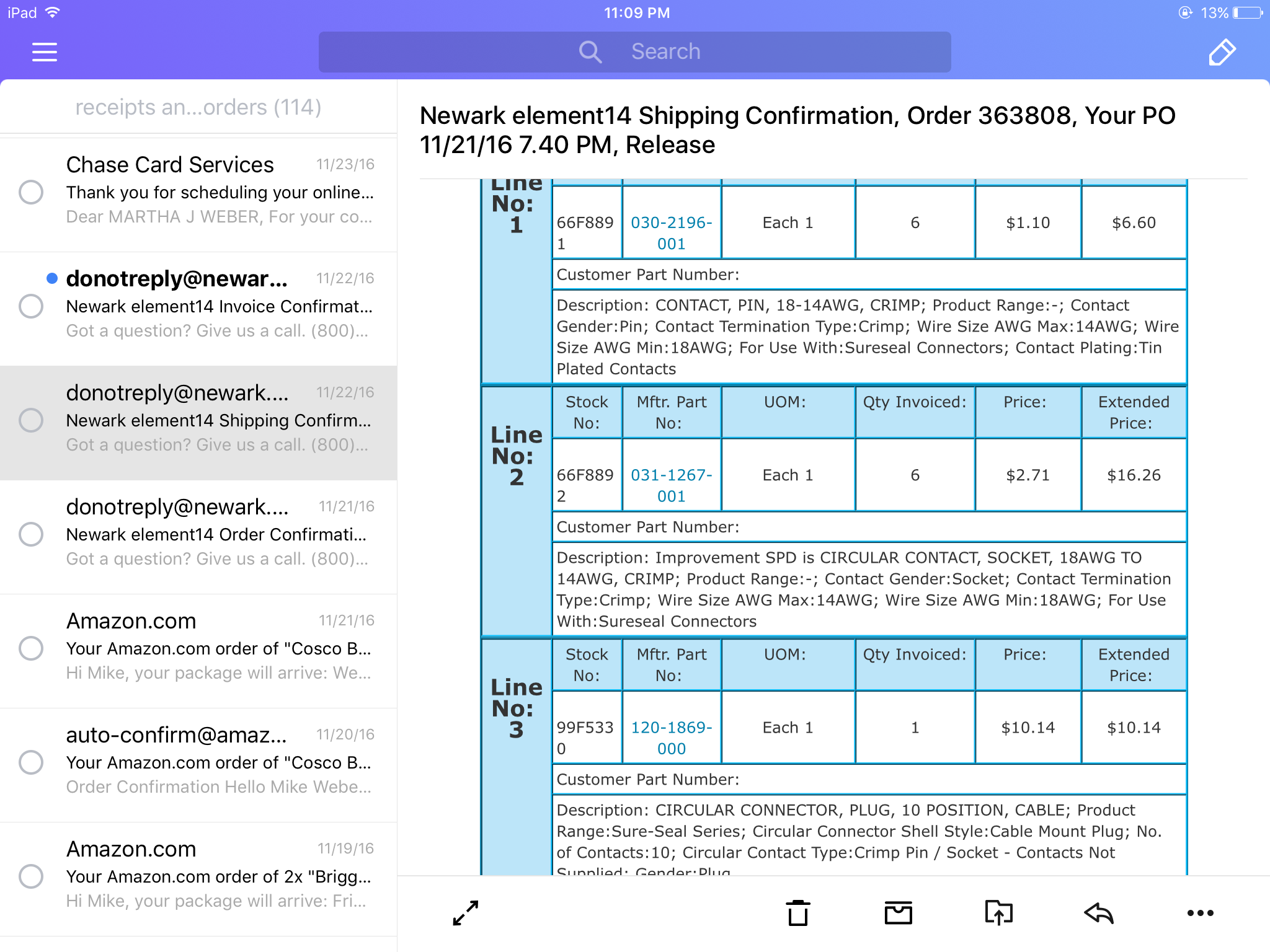

Here's the info for the necessary connector. Ordered from Nreark.com
